A self-righting system spends almost all of its life waiting. That is exactly why its condition is easy to overlook: nothing about an installed, unused system tells the crew whether it would still work when the boat is upside down. The checks below are written for operators, boat builders and maintenance teams, and they are arranged so that one person can work through them in a short yard visit.
What a self-righting system is made of

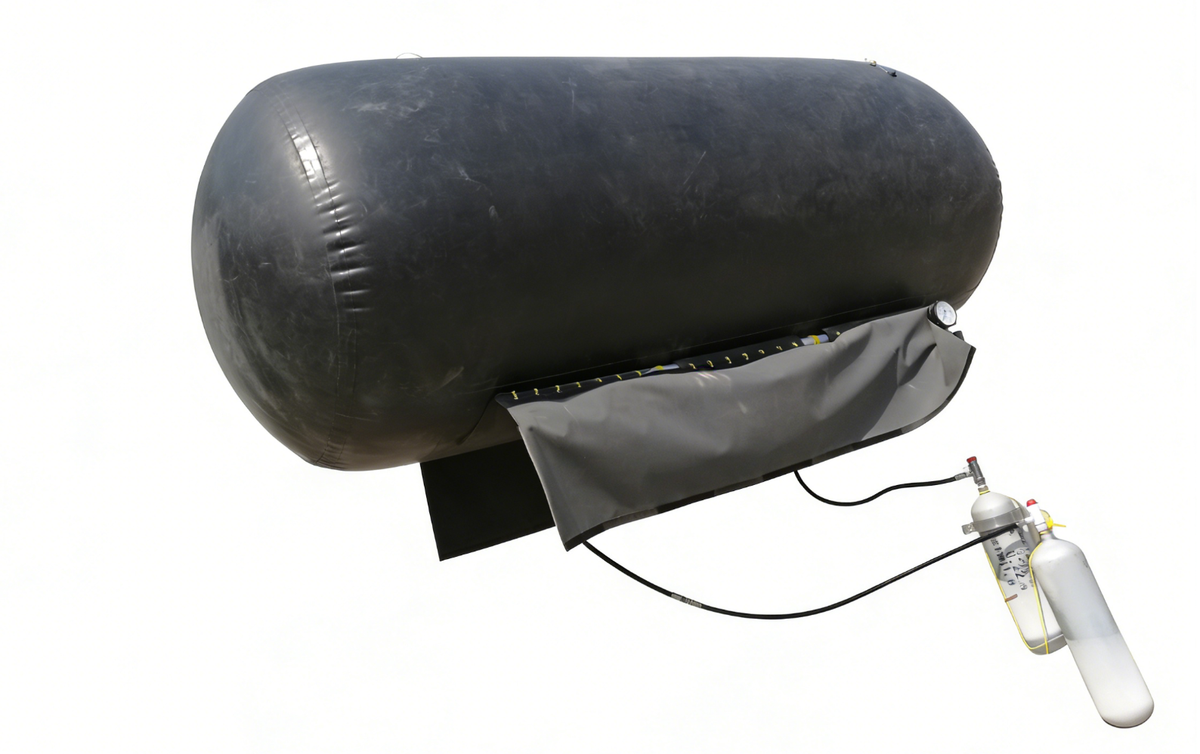

Most systems in service share the same components, even when the arrangement differs from one hull to another:
- An inflation medium, usually a stored gas cylinder with a valve
- A hose and valve path from the cylinder to the inflation bag
- Inflation bag or bags, held in a container or pack
- An activation mechanism: manual pull, automatic triggering, or both
- Mounting brackets, and for some designs additional buoyancy arranged at the stern
- On automatic versions, a sensor, wiring and a low-voltage supply
Each of those items has its own failure mode, and each can be checked without dismantling the installation.
Inspection checklist
- Cylinder and valve condition. Look for corrosion, deep scratches or damage to the cylinder, a valve that has been knocked or levered, and a cylinder that has shifted in its bracket. Record the date marked by the supplier and follow the service or replacement interval they state. Do not attempt to test, weigh or discharge a cylinder yourself.
- Hose, fittings and routing. Trace the hose end to end. Check for chafing against structure, cracks in the outer cover, corrosion at the fittings and any sharp bend that could close the passage. Confirm that deck cargo, fenders or mooring lines are not lying on the hose.
- Inflation bag and packing. Check the bag for UV degradation, abrasion, and contamination by fuel, oil or salt. Confirm that the bag is folded and packed as the supplier specifies: a bag that has been repacked loosely or twisted can inflate unevenly or become trapped by its own container.
- Container, lid and lanyard. Check that the lid opens freely, that fastenings are secure, and that the lanyard or release line is not fouled, painted over or shortened. Anything that has to move during deployment should move now, by hand.
- Activation mechanism. Confirm that the manual pull handle is visible, labelled and reachable in the places the crew is likely to be. On automatic systems, check the sensor mounting, its orientation and the condition of its connector against the supplier's installation instructions rather than by assumption.
- Mounting and surrounding structure. Check every bolt and bracket, then look at the structure the system is bolted to. A system that has been installed for several seasons can outlast the paint around its fastenings; corrosion or cracking in that area is a structural question, not a cosmetic one.
- Electrical supply on automatic versions. Check the battery or supply voltage, fuses, terminal condition and cable chafe, together with the waterproofing of connectors. A supply shared with other equipment should be verified as still available under normal operating conditions.
- Access and interference. Confirm that no later modification - a radar arch, a deck box, a towing bridle - now blocks the bag, the lid or the sensor. Additions to the boat are one of the most common reasons an installed system stops matching the vessel it was sized for.
After a capsize, a heavy impact or an activation
If the system has been activated, treat it as a one-time event: the cylinder, valve and bag should go back to the supplier for servicing and repacking before the boat returns to service. If the boat has been capsized, towed under load, grounded or struck without the system firing, inspect the mounting points, brackets, hose route and bag packing before the next trip, because impact damage does not always show on the outside of a packed container.
Records that keep a system serviceable
Keep the installation date, model, serial number, cylinder date and every inspection in the vessel's maintenance file. Then use the inspection interval required for your vessel: the supplier's stated interval for the model, and any regime applied by a flag administration, classification society, insurer or client. Where the two differ, the stricter requirement applies. Even a system that has never been activated ages: seals, hoses and bags have a shelf life, and that life runs whether the boat is in the water or ashore.
When the boat changes, the sizing should be reviewed
A self-righting system is configured for a specific vessel and a specific loading condition. If the boat has gained a heavier engine, a tower, extra fuel or battery capacity, or a different working load, the original configuration may no longer describe the boat it is fitted to. The useful step then is a configuration review against the current displacement, centre of gravity and installation arrangement - not a decision based on model dimensions alone.
Spares, service and first-time installations
For spares, service or a repeat order, send the model, serial number, date of manufacture and photographs of the installed arrangement. That is usually enough to identify the parts and the correct service path. For a first-time installation, the same information forms the basis of a configuration proposal.
HVON supplies custom self-righting systems for boats and USVs and the standard self-righting system range, including the SR2000800 inflatable system and the SR30001000 automatic system. Demonstration material is available on the HVON Boat YouTube channel.
Start with a configuration request
If you are planning a new installation, read what to include in a self-righting system enquiry before you write to us; it keeps the first exchange short. Then contact HVON at harvenjiang@gmail.com or Phone / WeChat: +86 185 5325 9852, and we will confirm the model, scope and service route for your vessel.
